Ordering code(Model code)

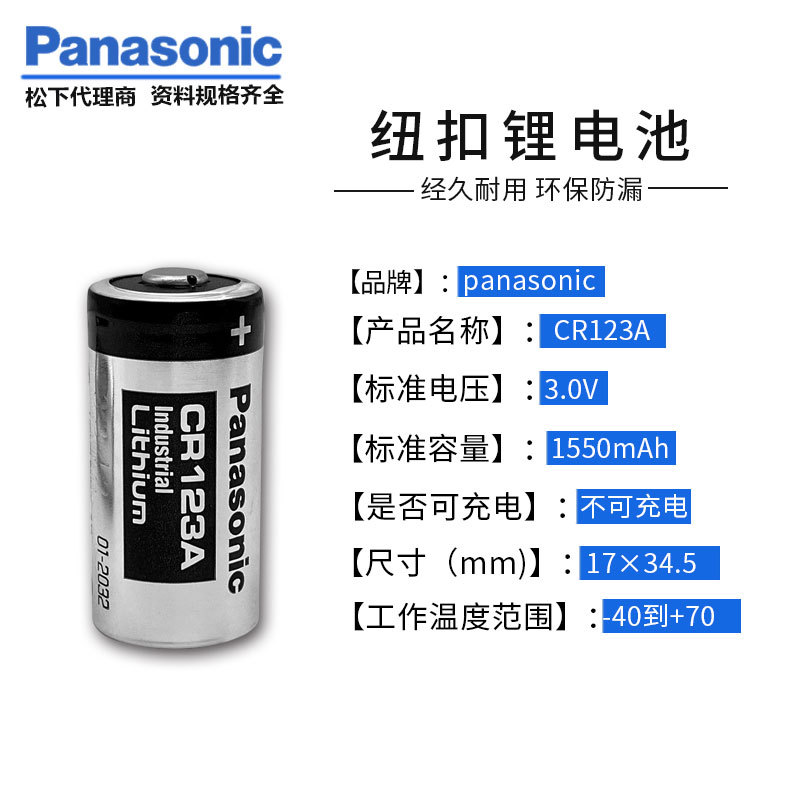

CR-123PE/BN (CR123A)

Nominal Voltage

3V

Nominal Capacity

1,550mAh

(Nominal capacity is based on the standard discharge current and cut-off voltage 1.8V at 20℃.)

Standard Discharge Load

100Ω

Maximum Continuous Discharge Current

1A at 20℃

Mass (bare cell)

Approx. 16g

Appearance

No noticeable deformation

Temperature

Operating;  -40℃ to 70℃ (Non condensing)

(Note: Contact Panasonic in case of using the battery out of the specified temperature range above.)

Recommendable Storage Condition

Temperature: 5℃ to 35℃

Humidity: Less than 70% R.H.

Battery Composition

Lithium primary battery is composed of cathode from Manganese dioxide, anode from Lithium, and

electrolyte from organic solvent and lithium salt.
